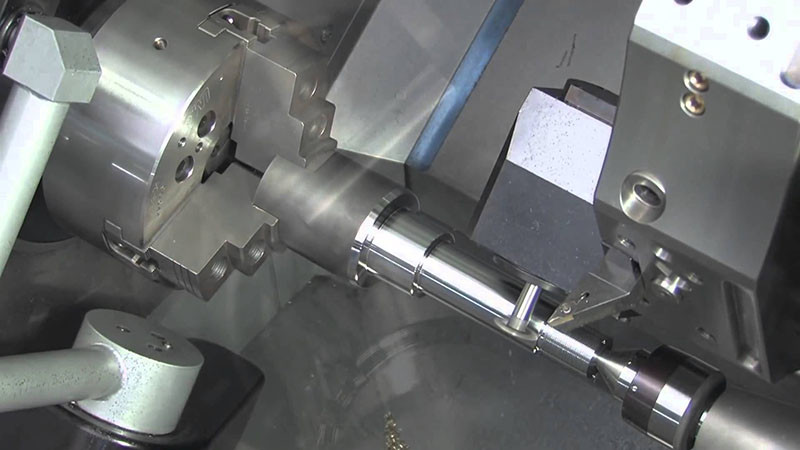

Precision Part Processing on Conventional and CNC Lathes

Elevate your manufacturing capabilities with our advanced turning services. We offer comprehensive solutions for part machining on both modern CNC lathes and traditional conventional machines, allowing us to meet a wide range of production requirements.

Key Advantages:

• High-precision machining with minimal tolerances
• Flexibility in processing small to large series
• Capability to machine a wide range of materials including steel, stainless steel, aluminum, and plastics
• Quick turnaround times due to optimized production processes
• Comprehensive solutions from prototypes to serial production
• Machining of both simple and complex parts up to 300 mm in diameter and 600 mm in length

Our Equipment:

1. Conventional Lathes

• Flexibility for single piece and small series production
• Suitable for simple components and special orders
• Ability for quick adjustments and changes during production

2. CNC Lathes

• High accuracy and repeatability
• Capability for complex machining including drilling and milling operations
• Ideal for medium to large series production
• Equipped with driven tools for milling operations

Our team of experienced technicians and CNC programmers ensures optimal results for every order. Whether you need a prototype, a small series, or large-volume production, we are ready to meet your requirements with maximum efficiency and quality.

We specialize in:

• Turning of rotary parts
• Milling of shaped surfaces on rotary parts
• Drilling and threading
• Production of grooves and slots

Contact us today to discover how our turning services can improve your manufacturing processes and strengthen your market competitiveness.

SPECIFICATION:

CNC HAAS ST-20Y

maximum lathing length	600 mm
maximum lathing diameter	332 mm
maximum lathing diameter above the blade	806 mm
maximum lathing diameter over skid	527 mm
passage of bars through spindle	51 mm
spindle C axis	yes
range of revolutions	4.000/min
motor output	14.9 kW
torque	203 Nm
guide paths	axis X = 236 mm axis Y = ±51 mm axis Z = 533 mm
number of revolver heads	1 Hybrid (BOT)
tool seats	6 + 6
driven tools	6
revolutions of driven tools	3.000/min



CNC HAAS TL-3

maximum lathing length	1.524 mm
maximum lathing diameter	508 mm
maximum lathing diameter above the blade	508 mm
maximum lathing diameter over lateral support	330 mm
passage of bars through spindle	88.9 mm
range of revolutions	1.800 /min
motor output	13.4 kW
torque	277 Nm @ 417/min
guide paths	X axis = 305 mm Z axis = 1.524 mm
