Precision Laser Cutting

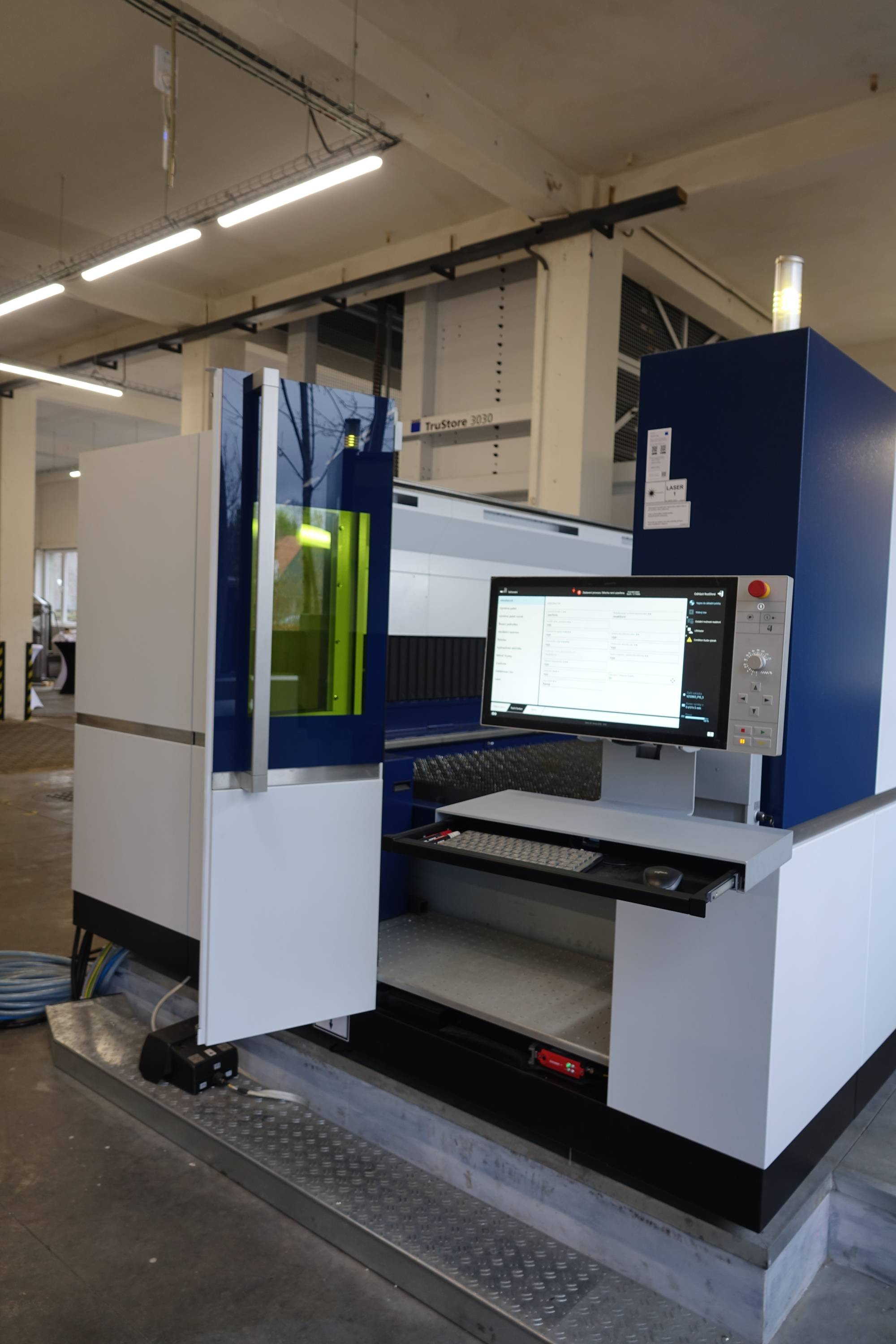

Elevate your manufacturing capabilities with our state-of-the-art TRUMPF TRULASER L3030 FIBER laser cutting system. This 4000 W powerhouse delivers unparalleled precision and versatility for all your sheet metal processing needs.

Maximum semi-finished product size is 3.000 x 1.500 x 115 mm, steel metal sheet up to 25 mm, stainless steel sheet up to 20 mm, aluminium up to 20 mm.

The machine provides automatic replacement of tables, laser sensor for contactless metal sheet position detection, capacity sensor for contactless detection of distance between cutting head and metal sheet surface. These features allow us to offer quality metal sheet processing of various shapes in short lead time.

Maximum metal sheet dimensions	3.000 x 1.500 mm
Maximum take-off X axis Y axis Z axis	3.000 mm 1.500 mm 115 mm
Maximum table load	1.110 kg
Maximum travel speed (X-Y)	120 m/min
Repeated accuracy	± 0.025 mm
Position accuracy	± 0.05 mm/m
Laser type	GE Fanuc HF CO2
Laser power	50 - 4.000 W
CNC control system	GE Fanuc 160 iL
Cooling	Closed water circuit



Key Advantages:

• Exceptional cutting quality across a wide range of materials
• High-speed processing for improved productivity
• Ability to handle complex geometries and intricate designs
• Minimal material waste and heat-affected zones

Our expert technicians ensure optimal results for every job, from prototyping to large-scale production runs. Contact us today to discuss how our advanced laser cutting services can streamline your manufacturing process and boost your competitive edge.
