Gear Hobbing and Spline Cutting

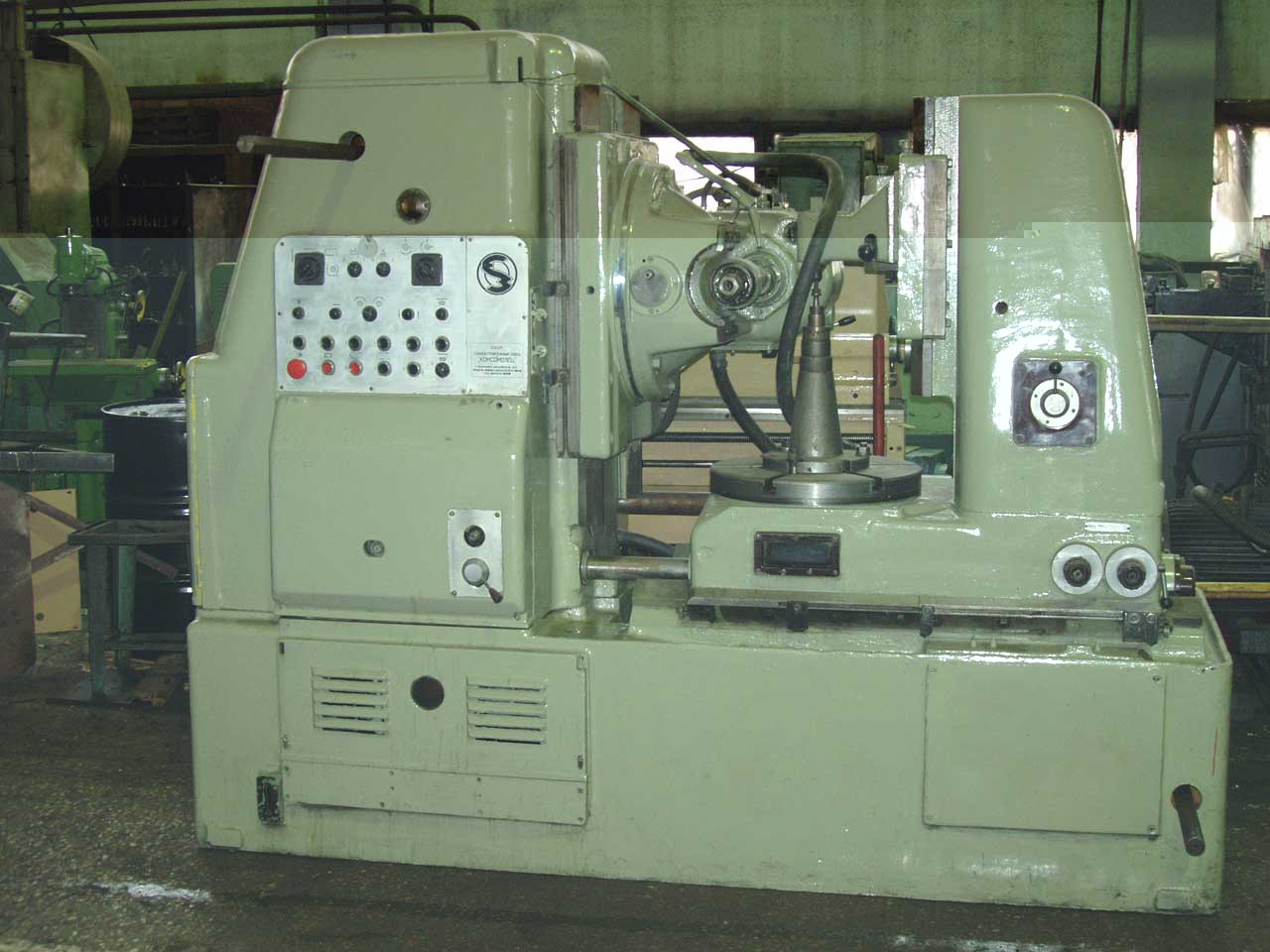

Enhance your gear and spline production with our precision hobbing services using the 5K324A machine. This versatile gear hobbing machine offers high accuracy and efficiency for a wide range of gear and spline cutting applications.

Key Features:

• Maximum workpiece diameter: 320 mm
• Maximum module: 6 mm
• Maximum gear face width: 250 mm
• Hob diameter range: 60 - 125 mm
• Hob length: up to 200 mm
• Workpiece spindle speed: 1.6 - 125 rpm
• Hob spindle speed: 50 - 400 rpm

Capabilities:

• Spur and helical gear cutting
• External spline cutting
• Worm wheel cutting
• High precision and surface finish
• Suitable for both small and medium-sized batches

Our experienced technicians ensure optimal gear quality and adherence to your specifications. Whether you need prototype gears or medium-volume production, we can meet your requirements with efficiency and precision.

Contact us today to discuss how our gear hobbing and spline cutting services can improve your product quality and streamline your manufacturing process.
